A sample of control panels designed, built and tested in our Jacksonville shop since 1969. Click any photo to enlarge it.
Water and Wastewater
Lift stations, wells and treatment plants for municipal utilities.

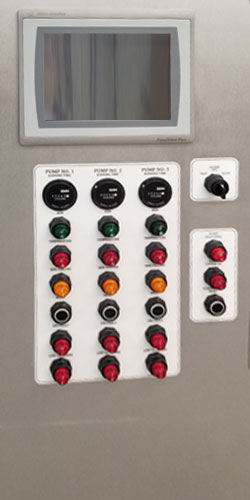

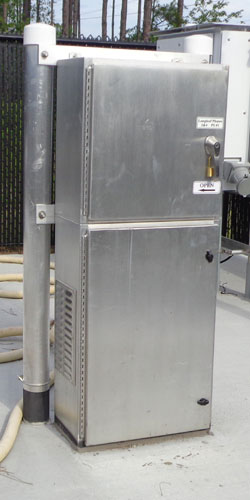

PLC control panel for a municipal water system. Controller, I/O, power supplies and network hardware on one backplate.Outdoor duplex lift station control panel with pump starters, alternation and alarm devices.Stainless steel wall-mount pump control panel built for outdoor service.Operator door with touchscreen HMI and status lights for each pump.Outdoor stainless steel enclosure installed at the site.
Industrial and Process
Motor control, drives and process automation for plants and facilities.

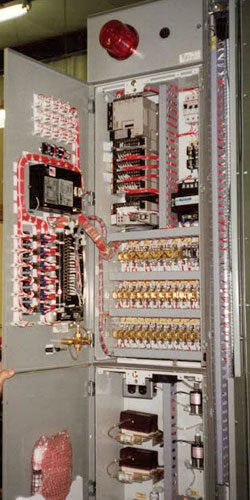

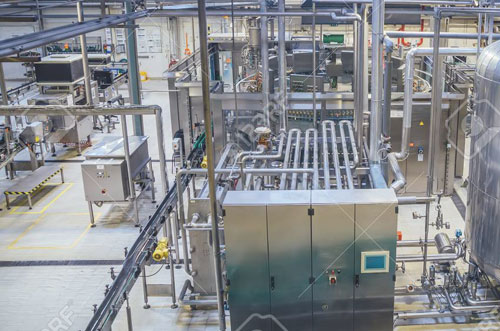

Custom motor control panel with structured wiring and labeled devices, built and tested in Jacksonville.Free-standing two-door control panel, full interior view.Two-door stainless steel control panel, interior view.Variable frequency drive panel with forced-air cooling.Control panel installed on a process skid.Stainless steel panel with pilot lights and selector switches on the inner door.Painted steel wall-mount panel with operator devices on the inner door.Inner door with pilot lights and selector switches, wired, bundled and labeled.
Hazardous Locations
Control equipment for classified areas, built to UL 698A.

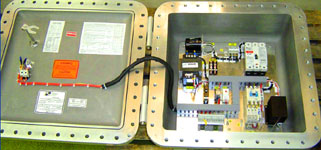

Explosion-proof cast enclosures for hazardous locations.
Power and Utilities
Switchgear, metering and power distribution.

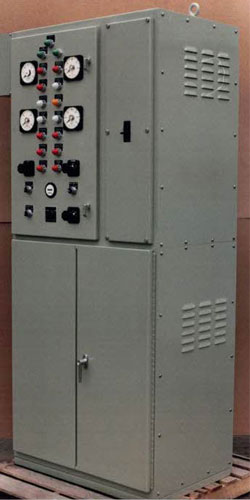

Free-standing switchgear and metering section.
OEM and Machine Builders
Repeat production panels built to the same drawing every run.
Repeat production panels for a machine builder.Stock alarm panels, ready to ship.
Quality
Every panel is inspected and documented before it ships.
Panel at final quality control inspection.
Have a project in mind?Request a quote or call (904) 292-0110.
