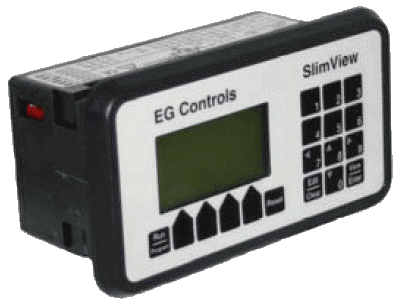

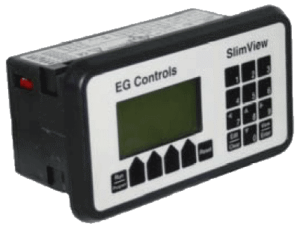

Slim View Float Controller

Slim View Float Controller

Slim View™

Product Status: NOT ACTIVE

The Slim View  has been replaced by the Digi-Gage Plus

Float Series Controller

Product Overview

The SlimView™ Float Series Controller is an industrial control unit consisting of a high speed count control module and a logic control capable of processing up to 100 rungs of ladder logic. A multi-line, alphanumeric display and 18 front panel input keys are used for an operator interface.

The EG Controls SlimView™ Float Series Controller has been pre-programmed to operate up to two pumps in a duplex float panel configuration. All pre-programming is done by the manufacturer prior to shipment.

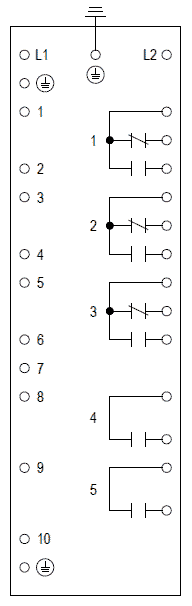

Typical wiring for Slim View

Slim View connection

Technical Specifications

Environmental

  • Operation: Indoor Use to 2000m
  • Operating Temperature: 32° to 122°F(0° to 50°C)
  • Storage Temperature: -4° to 158° F(-20°
  • Humidity: 0 to 85% RH, non-condensing
  • Front Panel: NEMA Type 4X indoor use only when mounted with gasket provided
  • Safety: UL, cUL listed, CE compliant

Mechanical

  • DIN Panel cutout: 2.68”( 68 mm) x 5.43” (138 mm)
  • Outline: 6.18” (157 mm) x 3.43” (87 mm) x 3.19″ (81 mm)
  • Panel Depth: 2.82” ( 72 mm) maximum
  • Enclosure: Polycarbonate/ABS

Input Power

  • 85 – 265VAC
  • 47-63 Hz
  • 20VA

Control Inputs

  • Number: 10
  • Impedance: 4.75k Ohms to +5 VDC

Power Outputs

  • 24 DC +/- 15%, 100mA max, short circuit protected
  • 12 DC +/- 10%, 75mA max, short circuit protected

Relay Outputs

  • Number: 3 (Form C); 2 (Form A)
  • Contacts: 5A, 250V AC
  • Isolation: 2300 VAC

Transistor Outputs

  • Number: 2
  • Type: NPN Darlington
  • Ratings: 150 mA max ON current; 30 VDC max OFF voltage

Data Retention

  • Program Data Type: Non-volatile, 100 years, no batteries

Human Interface

  • Display Type: 128 x 64 pixel graphic LCD with LED backlight
  • Number of Keys: 18
  • Type of Keys: Membrane switches with tactile feedback
  • Real Time Clock Format: Seconds, minutes, hours, day and date

Character Size:

  • .12” high – 21 characters/line, 6 maximum
  • .24” high – 10 characters/line, 3 maximum
  • .35” high – 7 characters/line, 2 maximum
