Datasheets

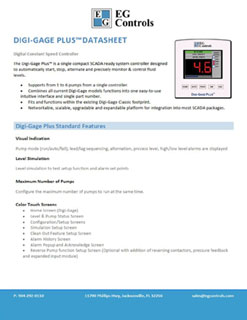

Data Sheet for the Digi-Gage Plus

Click to Download the Digi-Gage Plus Datasheet

Digi-Gage Plus™

Product Status: ACTIVE

Digital Constant Speed Controller

The Digi-Gage Plus™ is a single compact SCADA ready system controller designed to automatically start, stop, alternate and precisely monitor & control fluid levels.

  • Supports from 1 to 6 pumps from a single controller.
  • Combines all current Digi-Gage models functions into one easy-to-use intuitive interface and single part number.
  • Fits and functions within the existing Digi-Gage Classic footprint.
  • Networkable, scalable, upgradable and expandable platform for integration into most SCADA packages.

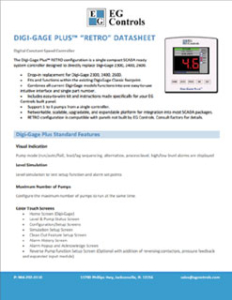

Data Sheet for the Digi-Gage Plus RETRO Configuration

Data Sheet for the Digi-Gage Plus RETRO Configuration

Digi-Gage Plus™ RETRO Configuration

Product Status: ACTIVE

Digital Constant Speed Controller

The Digi-Gage Plus™ RETRO configuration is a single compact SCADA ready system controller designed to directly replace Digi-Gage 2300, 2400, 2600.

  • Drop-in replacement for Digi-Gage 2300, 2400, 2600.
  • Fits and functions within the existing Digi-Gage Classic footprint.
  • Combines all current Digi-Gage models functions into one easy-to-use intuitive interface and single part number.
  • Includes easy-to-wire kit and instructions made specifically for your EG Controls built panel. .
  • Support 1 to 6 pumps from a single controller.
  • Networkable, scalable, upgradable, and expandable platform for integration into most SCADA packages.
  • RETRO configuration is compatible with panels not built by EG Controls. Consult factory for details.

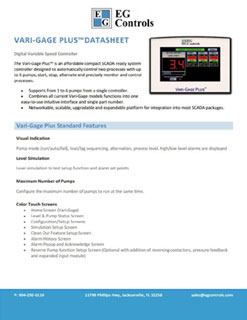

Data Sheet for the Vari-Gage Plus

Click to Download the Vari-Gage Plus Datasheet

Vari-Gage Plus™

Product Status: ACTIVE

Digital Variable Speed Controller

The Vari-Gage Plus™ is an affordable compact SCADA ready system controller designed to automatically control two processes with up to 6 pumps, start, stop, alternate and precisely monitor and control processes.

  • Supports from 1 to 6 pumps from a single controller.
  • Combines all current Vari-Gage models functions into one easy-to-use intuitive interface and single part number.
  • Networkable, scalable, upgradable and expandable platform for integration into most SCADA packages.

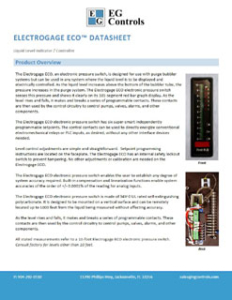

Data Sheet for the Electrogage ECO

Data Sheet for the Electrogage ECO

Electrogage ECO™

Product Status: IN DEVELOPMENT

Liquid Level Indicator / Controller

The Electrogage ECO, an electronic pressure switch, is designed for use with purge bubbler systems but can be used in any system where the liquid level is to be displayed and electrically controlled. As the liquid level increases above the bottom of the bubbler tube, the pressure increases in the purge system. The Electrogage ECO electronic pressure switch senses this pressure and shows it clearly on its 101-segment red bar graph display. As the level rises and falls, it makes and breaks a series of programmable contacts. These contacts are then used by the control circuitry to control pumps, valves, alarms, and other components.

Data Sheet for the Logic Chassis

Click to Download the Logic Chassis Datasheet

Logic Chassis

Product Status: CLASSIC / LIMITED RELEASE

Duplex Logic Control System

The duplex Logic Control System is an anodized aluminum sub-assembly with a logic panel. The system consists of a logic chassis mounted on the back panel connected by a multi-conductor cable to a logic panel mounted on the inner door.

The purpose of the Logic Control System is to incorporate all relay logic functions into one integrated unit. With no mechanical, moving parts, the Logic Control System adds to the reliability of any control panel. It is exclusively available from EG Controls.

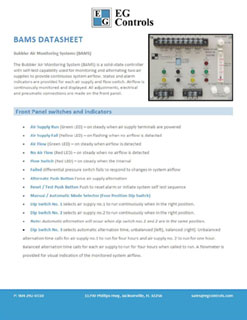

Data Sheet for the BAMS

Click to Download the BAMS Datasheet

BAMS

Product Status: CLASSIC / LIMITED RELEASE

Bubbler Air Monitoring Systems

The Bubbler Air Monitoring System (BAMS) is a solid-state controller with self-test capability used for monitoring and alternating two air supplies to provide continuous system airflow. Status and alarm indicators are provided for each air supply and flow switch. Airflow is continuously monitored and displayed. All adjustments, electrical and pneumatic connections are made on the front panel.

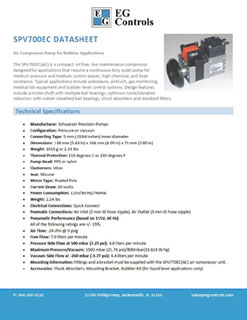

Data Sheet for the SPV700EC

Click to Download the SPV700EC Datasheet

SPV700EC

Product Status: CLASSIC / LIMITED RELEASE

Air Compressor Pump for Bubbler Applications

The SPV700EC(AC) is a compact, oil free, low maintenance compressor designed for applications that require a continuous duty quiet pump for medium pressure and medium suction power, high chemical and heat resistance. Typical applications include autoclaves, airbrush, gas monitoring, medical lab equipment and bubbler level control systems. Design features include a motor shaft with multiple ball bearings, optimum noise/vibration reduction with rubber sheathed ball bearings, shock absorbers and standard filters.
